TFT Modules, TFT LCD Module, TFT Panel Manufacturer
This is the detailed information for TFT Modules, TFT LCD Modules. The information includes model, Screen Size, Active Area, Resolution, View angle, Brightness, Contrast Ratio, Interface, Pin Assignment, and dimensions for TFT Modules, TFT LCD Modules. Please browse the following TFT display modules items you are interested in, or contact us to know details. Vitek provides available TFT LCD sizes from 1.54 TFT,1.75 TFT, 2.0 TFT, 2.4 TFT, 2.8 TFT,3.08 TFT, 3.5 TFT,3.95 TFT, 4.3 TFT LCD, 5.0 TFT,5.7 TFT, 7.0 TFT,10.1 TFT LCD for our customers with various options.

Display
Format		 Photos Model
Number		 Outline
Dimension
(WxH)		 Resolution Cell Luminance
(cd/m^2)		 TP Interface Gray level
inversion

0.96

 VT0096A VT0096A 13.5x27.95x1.45 80x160 IPS 400 / MCU ALL

1.77

 VT018C VT018C 34.7 x 46.75 x 2.5 128x160 TN 200 / MCU 12

2.0

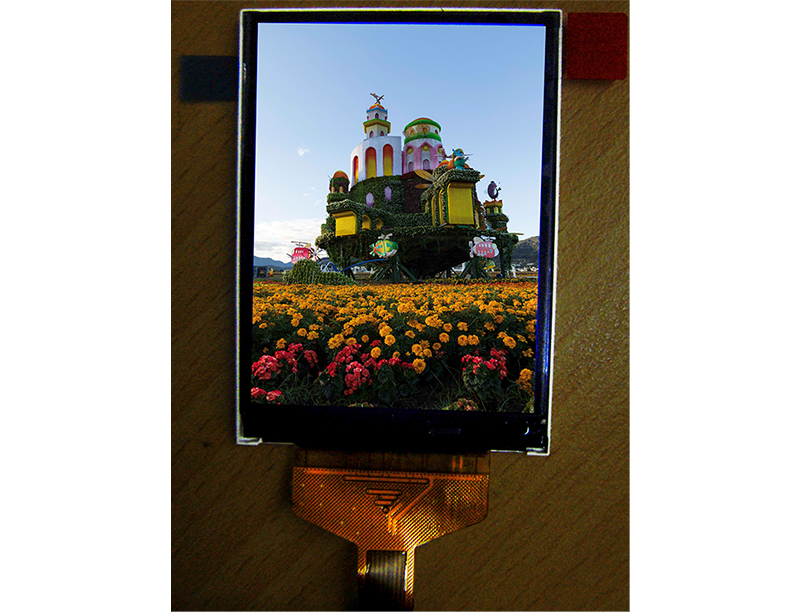

 VT020D VT020D 34.6 x 47.8 x 2.05 240x320 IPS 400 / MCU ALL

2.4

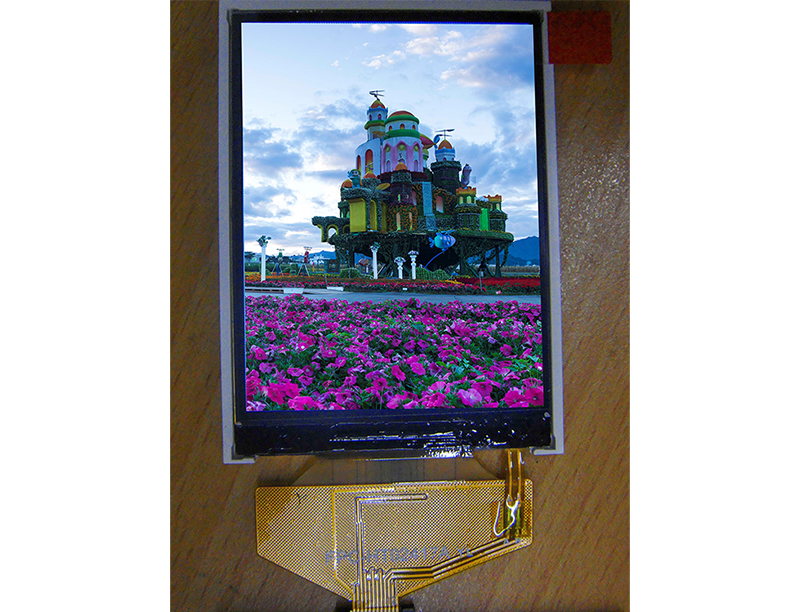

 VT024K VT024K 42.72 x 58.36 x 2.55 240x320 IPS 400 / MCU ALL

2.8

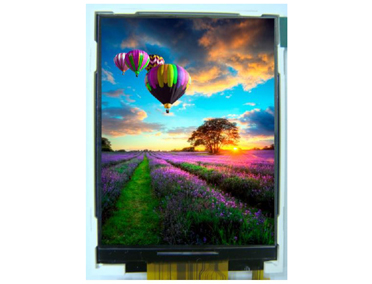

 VT028J VT028J 50.0 x 69.2 x 2.4 240x320 IPS 350 RTP MCU&RGB ALL

2.8

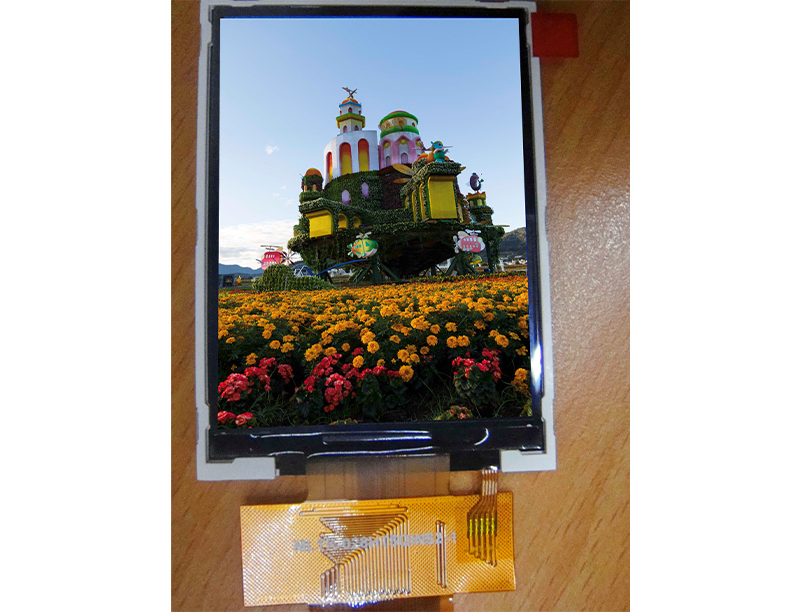

 VT028K VT028K 50.0 x 69.2 x 3.0 240x320 IPS 300 / MCU ALL

3.5

 3.5 TFT LCD Module, 3.5 TFT, 3.5 TFT LCD, TFT Modules VT035A 76.9 x 63.9 x 3.26 320x240 IPS 400 RTP RGB ALL

4.3

 4.3 TFT LCD Module, 4.3 TFT LCD, 4.3 TFT Display VT043A 105.5 x 67.2 x 2.9 480 x 272 TN 400 RTP RGB 12

4.3

 4.3 VT043A1 105.5 x 67.2 x 2.9 480x272 TN 400 RTP RGB 12

4.3

 4.3 inch TFT LCD Module VT043A2 105.5 x 67.2 x 2.95 480x272 TN 450 / RGB 6

4.3

 VT043G VT043G 105.5 x 67.2 x 2.8 480x272 IPS 800 RTP RGB ALL

4.3

 VT043H VT043H 105.5x67.2x2.6 800x480 IPS 500 / RGB ALL

5.0

 5.0 TFT, 5.0 TFT LCD, TFT Module VT050A 120.7 x 75.8 x 3.1 480x272 TN 500 / RGB 6

5.0

 5.0 TFT, 5.0 TFT LCD, TFT Module VT050B 120.7 x 75.8 x 2.8 800x480 TN 450 RTP RGB 6

7.0

 7.0" TFT LCD Modules, TFT Panel Manufacturer VT070A 165.0 x 104.44 x 5.2 800x480 TN 350 RTP RGB 6

7.0

 7 inch tft lcd, 7 inch tft display VT070E 164.9 x 100.0 x 5.5 800x480 TN 500 RTP RGB 6

7.0

 7.0 VT070F 164.85 x 99.95 x3.5 800x480 TN 400 RTP RGB 6

7.0

 7.0 VT070J 164.9 x 100.0 x 5.7 800x480 TN 500 CTP LVDS 6

7.0

 7.0 VT070K 164.9 x 100.0 x 2.8 1024x600 IPS 500 RTP LVDS ALL

7.0

 VT070M VT070M 165.75x105.3x2.8 1024x600 IPS 320 / LVDS ALL
