Get started on your prototyping and testing with our example coding system LCD MODULES /LCD manufacture TFT manufacture TFT LCD. All the code provided here is designed by our engineers to demonstrate the capabilities of our display products. Browse by display types and select the product number to view the associated code. You’ll find code for all our display types.

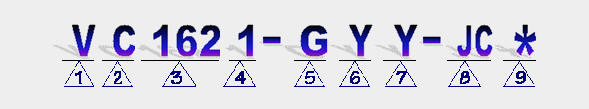

| NO | Mark | Code | Description | |
|---|---|---|---|---|
| 1 | Brand Name | V | VITEK DISPLAY CO., LTD | |
| 2 | LCD Style | C | Character type | |
| O | COG | |||
| G | Graphic type | |||
| S | Seven-segment display | |||
| 3 | Pixel | 081, 162,... | Character type: word X line | |
| 12232,12864.. | Drawing type: vertical X column | |||
| 4 | Module series | 1 ~ 9 | Digital series | |
| Z~A | Guest Product Number | |||
| 5 | Liquid crystal display polarizer | A | Reflective, N.T., 6H | |
| B | Reflective, N.T., 12H | |||
| C | Reflective, W.T., 6H | |||
| D | Reflective, W.T., 12H | |||
| E | Transflective, N.T., 6H | |||
| F | Transflective, N.T., 12H | |||
| G | Transflective, W.T., 6H | |||
| H | Transflective, W.T., 12H | |||
| I | Transmissive, N.T., 6H | |||
| J | Transmissive, N.T., 12H | |||
| K | Transmissive, W.T., 6H | |||
| L | Transmissive, W.T., 12H | |||
| 6 | Liquid crystal display module | P | TN | Positive display |
| N | Negative display | |||
| G | STN | Positive, gray | ||
| Y | Positive, yellow green | |||
| B | Negative, blue | |||
| F | FSTN | Positive display | ||
| W | Negative display | |||
| 7 | Backlight | N | NONE | No backlight |
| A | LED | Amber | ||
| B | Blue | |||
| E | Yellow-green side | |||
| G | Green | |||
| R | Red | |||
| W | White | |||
| Y | yellow-green | |||
| C | CCFL | White | ||
| 8 |
Character type( IC FONT ) |
CC | English and Russian | |
| JC | English and Japanese | |||
| RC | English and European | |||
| EC | English and European | |||
| Graphic type | X | Without Negative Voltage | ||
| V | Negative Voltage | |||
| T | Temperature Compensation | |||
| B | Chinese BIG 5 | |||
| G | Chinese GB , | |||
| S | Chinese BIG 5 , Chinese GB , Japanese |
|||
| O | Other | |||
| P | Touch panel | |||
| 9 | Special code | No Code | Special code outside the standard | |
| 01,02,... | Special code | |||
TFT Coding principle
| V | T | 035 | A | — | L | N | 03 | — | C | ***** |
|---|---|---|---|---|---|---|---|---|---|---|
| Vitek | TFT | Size | Series | — | Perspective | T/P | Resolution | — | Cell | Special code |
| LCD Perspective | |
|---|---|
| K | Grayscale Inversion 6H |
| L | Grayscale Inversion 12H |
| Z | IPS Full view |
| Touch Panel | |
|---|---|
| T | with T/P |
| N | w/o T/P |
| C | Capacitive T/P |
| Resolution | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 |
| 240 x RGB x 320 |
320 x RGB x 234 |
320 x RGB x 240 |
480 x RGB x 234 |
480 x RGB x 272 |
640 x RGB x 480 |
800 x RGB x 480 |
800 x RGB x 600 |
960 x RGB x 240 |
1024 x RGB x 576 |
176 x RGB x 220 |
128 x RGB x 160 |
128 x RGB x 128 |
1280 x RGB x 800 |
| 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 |
| 240 x RGB x 400 |
320 x RGB x 480 |
1024 x RGB x 600 |
480 x RGB x 800 |
272 x RGB x 480 |
800 x RGB x 300 |
480 x RGB x 854 |
720 x RGB x 1280 |
480 x RGB x 128 |
480 x RGB x 640 |
1024 x RGB x 768 |
480 x RGB x 480 |
80 x RGB x 160 |
296 x RGB x 222 |
| Cell | |
|---|---|
| C | CMO |
| A | AUO |
| B | BOE |
| I | InnoLux |
| H | HandStar |
| T | Tianma |
| P | CPT |
| G | GP |
| V | IVO |
| F | CTC |
| L | LAIBAO |
| Special code 01 | |
|---|---|
| 01 | |
| 02 | |
| 03 | |
| 04 | |
| 05 | |
| 06 | |
| 07 | |
| 08 | |
| Special code 02 | |
|---|---|
| A~A9 | A/D BOARD (ex: A/D BOARD , VGA BOARD….) |
| B~B9 | Backlight special specifications (ex: high brightness , Number of LEDs , Series and parallel…..) |
| C~C9 | Control board specifications (ex: 8080,6800…....) |
| D~D9 | Backlight Special + Control Edition(Highlight+A/D B) |
| F~F9 | Control panel + iron frame |
| P | T/P Different |
