VT0096A

1. Screen Size: 0.96 inch
2. Dimension (W x H x T): 13.5 x 27.95 x 1.45 mm
3. Active Area: 10.8 x 21.696 mm
4. Resolution: 80x(RGB)x160 (pixels)
5. View angle (U/D/L/R): 80/80/80/80
6. Brightness: 400 cd/m2 TYP
7. Contrast Ratio: 800:1 TYP
8. Interface: SPI-4
9. Option: N.C

Pin Assignment

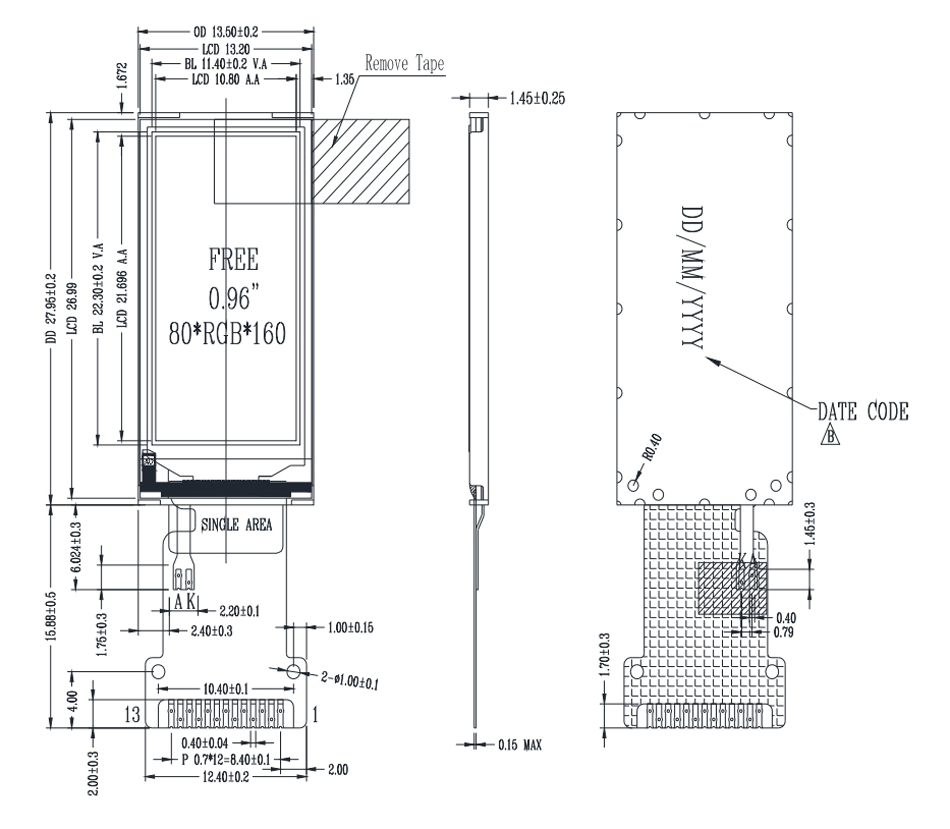

Dimension

Pin No	Symbol	Description	Input/Output
1	NC	No Connect	NC
2	NC	No Connect	NC
3	SDA	SPI Data	I
4	SCL	SPI Clock	I
5	RS	serial interface RS	I
6	RESET	RESET	I
7	/CS	Chip select	I
8	GND	Ground	P
9	NC	No Connect	NC
10	VDD	Power supply	P
11	LEDK	LED-	I
12	LEDA	LED+	P
13	GND	Ground	P
