10.1 TFT LCD Display

VT101C

1.Screen Size: 10.1 inch
2.Dimension (W x H x T): 235.0 x 143.0 x 5.0 mm
3.Active Area: 222.72 x 125.28 mm
4.Resolution: 1024x(RGB)x600 (pixels)
5.View angle (U/D/L/R): 45/60/60/60
6.Brightness:350 cd/m2
7.Contrast Ratio:500:1
8.Interface: LVDS interface
Prev Next
  • 10.1 TFT LCD Display
  • Pin Assignment

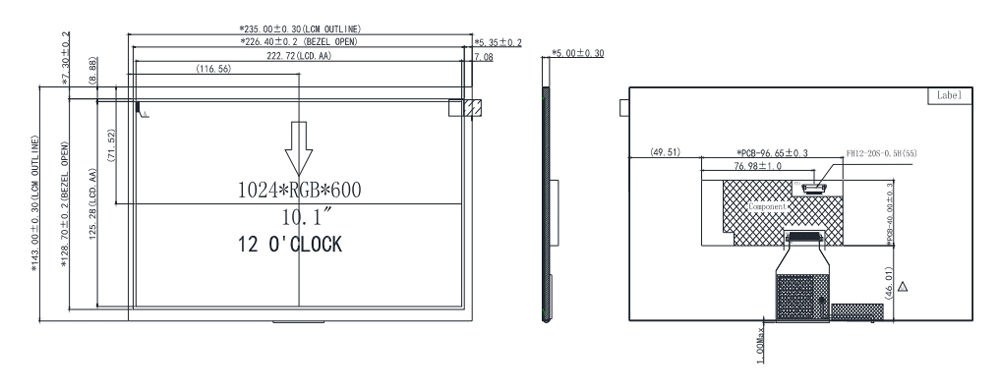

  • Dimension
Pin Symbol Pin Symbol
1 VCC 11 RXIN2+
2 RESET 12 VSS
3 VSS 13 RXCLK-
4 RXIN0- 14 RXCLK+
5 RXIN0+ 15 VSS
6 VSS 16 RXIN3-
7 RXIN1- 16 RXIN3+
8 RXIN1+ 18 VSS
9 VSS 19 BL
10 RXIN2- 20 VSS
