10.1" TFT LCD Display 1280x800

VT101E

1.Screen Size: 10.1 inch
2.Dimension (W x H x T): 229.46 x 149.1 x 5.7 mm
3.Active Area: 216.96 x 135.6 mm
4.Resolution: 1280x(RGB)x800 (pixels)
5.View angle (U/D/L/R): 70/70/70/70
6.Brightness:500 cd/m2
7.Contrast Ratio:800:1
8.Interface: LVDS interface
Prev
  • 10.1
  • Pin Assignment

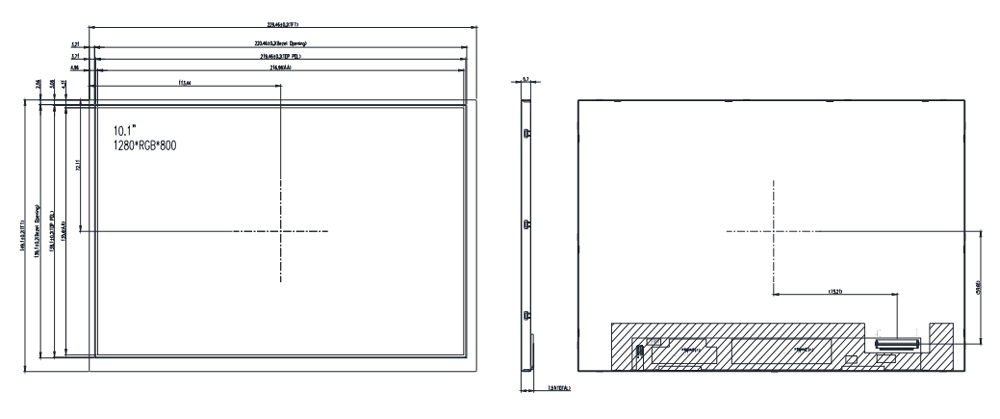

  • Dimension
Pin Symbol Pin Symbol
1 VCOM 21 RXIN3+
2~3 VCC 22 VSS
4~6 NC 23~24 NC
7 VSS 25 VSS
8 RXIN0- 26 NC
9 RXIN0+ 27 LED_PWM
10 VSS 28 NC
11 RXIN1- 29 AVDD
12 RXIN1+ 30 VSS
13 VSS 31~32 LED-
14 RXIN2- 33~34 NC
15 RXIN2+ 35 VGL
16 VSS 36 NC
17 RXCLK- 37 CABC_EN
18 RXCLK+ 38 VGH
19 VSS 39~40 LED+
20 RXIN3-
