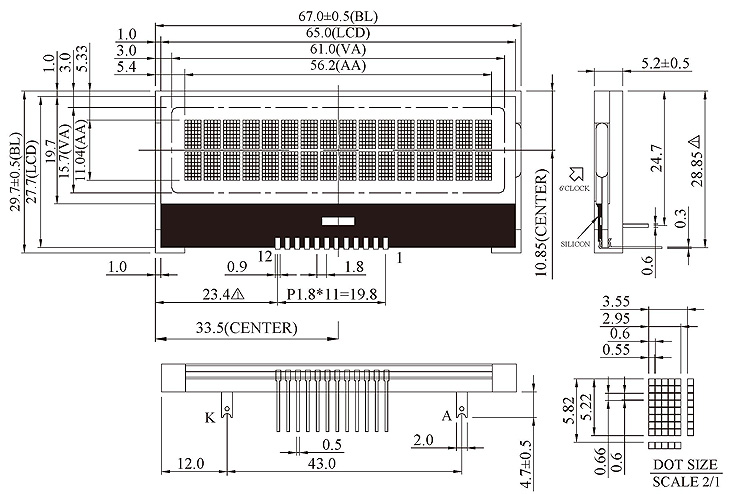

| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 67.0 x 29.7 | mm |
| Viewing Area | 61.0 x 15.7 | mm |
| Active Area | 56.2 x 11.04 | mm |
| Dot Size | 0.55 x 0.6 | mm |
| Character Size | 2.95 x 5.22 | mm |
| Item | Symbol | Condition | Typical Value | Unit |
|---|---|---|---|---|
| Input Voltage | VDD | 25 ℃ | 3.3 | V |
| Supply Current | IDD | VDD = +3.3V | 1.2 | mA |
| Supply Voltage For Panel | VLCD | 25 ℃ | 4.5 | V |
| Pin | Symbol | Function | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | RST | Reset signal | |||||||||
| 2 | RS | H:Data L:Instruction | |||||||||
| 3 | CSB | Chip select | |||||||||
| 4 | SCL | Serial clock input | |||||||||
| 5 | SDA | Serial data input/output | |||||||||
| 6 | VSS | GND | |||||||||
| 7 | VDD | Supply Voltage for logic(+3.3V) | |||||||||
| 8 | PSB |
|
|||||||||
| 9 | PSI2B | ||||||||||
| 10 | CAP1P | For voltage booster circuit(VDD-VSS) | |||||||||
| 11 | CAP1N | External capacitor about 0.1u~4.7uF | |||||||||
| 12 | VOUT | Power supply for LCD driver |
