16x2 COG LCD Module

VO1625

1.5x8 dots with cursor
2.Built-in controller ST7032
3.+3.3V single power supply
4.1/16 duty cycle

Prev Next
  • 16x2 COG Module - VO1625
  • Mechanical Data
  • Electronic Characteristics
  • Pin Assignment

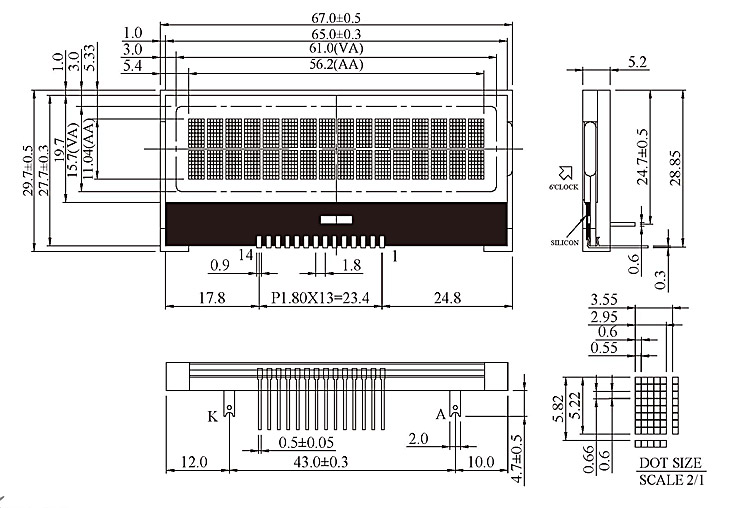

  • Dimension
Item Standard Value Unit
Module Dimension 67.0 x 29.7 mm
Viewing Area 61.0 x 15.7 mm
Active Area 56.2 x 11.04 mm
Dot Size 0.55 x 0.6 mm
Character Size 2.95 x 5.22 mm
Item Symbol Condition Typical Value Unit
Input Voltage VDD 25 ℃ 3.3 V
Supply Current IDD VDD = +3.3V 0.5 mA
Supply Voltage For Panel VLCD 25 ℃ 4.5 V
Pin Symbol Function
1 VSS GND
2 VO Power supply for LCD driver
3 V DD Supply Voltage for logic(+3.3V)
4 RS H:Data L:Instruction
5 R/W H/L read/write signal
6 E Enable select input pin
7~14 DB0~DB7 H/L data bus line

COG LCD Modules - VO1625
