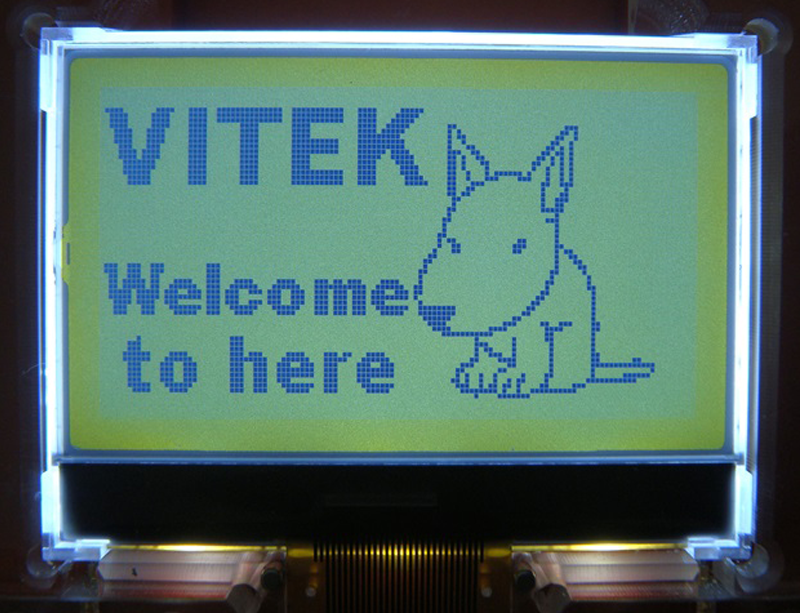

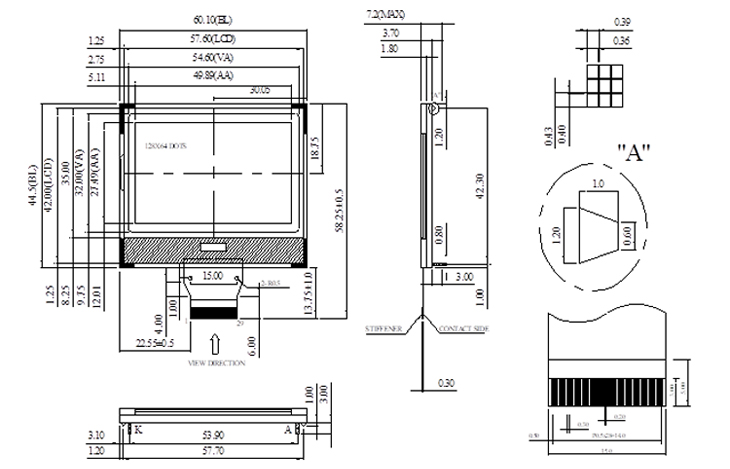

| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 60.1 x 58.25 | mm |
| Viewing Area | 54.6 x 32.0 | mm |
| Active Area | 49.89 x 27.49 | mm |
| Dot Size | 0.36 x 0.4 | mm |
| Dot Pitch | 0.39 x 0.43 | mm |
| Interface | 8080 |
| Item | Symbol | Condition | Typical Value | Unit |
|---|---|---|---|---|
| Input Voltage | VDD | 25 ℃ | 3.0 | V |
| Supply Current | IDD | VDD = +3.0V | 1.0 | mA |
| Supply Voltage For Panel | VLCD | 25 ℃ | 9.5 | V |
| Pin | Symbol | Pin | Symbol |
|---|---|---|---|
| 1~2 | NC | 16~23 | DB7~DB0 |
| 3~7 | V0~V4 | 24 | RDB |
| 8 | C2- | 25 | RWB |
| 9 | C2+ | 26 | A0 |
| 10 | C1+ | 27 | RSTB |
| 11 | C1- | 28 | CS1B |
| 12 | C3+ | 29 | NC |
| 13 | VOUT | ||
| 14 | VSS | ||
| 15 | VDD |
