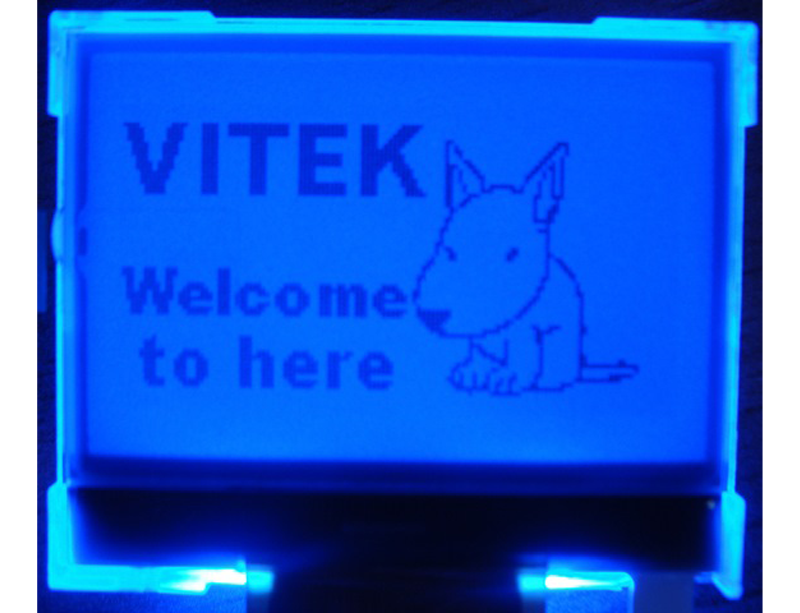

| Item | Standard Value | Unit |
|---|---|---|

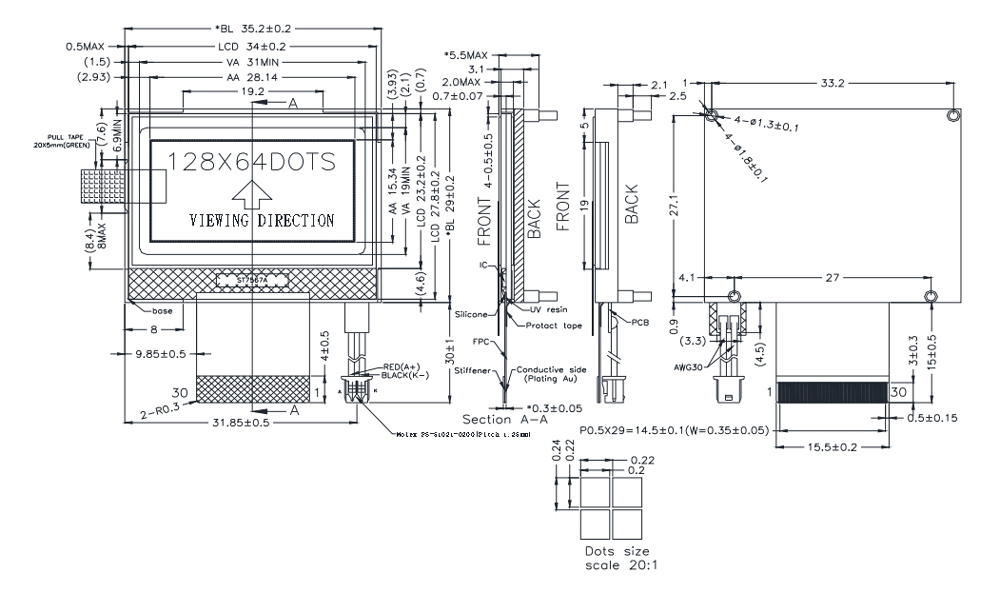

| Module Dimension | 35.2 x 44.0 | mm |
| Viewing Area | 31.0 x 19.0 | mm |
| Active Area | 28.14 x 15.34 | mm |
| Dot Size | 0.2 x 0.22 | mm |
| Dot Pitch | 0.22 x 0.24 | mm |
| Interface | 6800/8080/SPI |
| Item | Symbol | Condition | Typical Value | Unit |
|---|---|---|---|---|
| Input Voltage | VDD | 25℃ | 3.3 | V |
| Supply Current | IDD | VDD = +3.3V | 0.5 | mA |
| Supply Voltage For Panel | VLCD | 25℃ | 10 | V |
| Pin | Symbol | Pin | Symbol |
|---|---|---|---|
| 1 | VG | 18 | DB4 |
| 2 | NC | 19 | DB3 |
| 3 | XV0 | 20 | DB2 |
| 4 | V0 | 21 | DB1 |
| 5 | NC | 22 | DB0 |
| 6 | NC | 23 | EN |
| 7~10 | NC | 24 | R/W |
| 11~12 | NC | 25 | RS |
| 13 | VSS | 26 | /CS |
| 14 | VDD | 27 | C86 |
| 15 | DB7 | 28 | PSB |
| 16 | DB6 | 29 | IVSS |
| 17 | DB5 | 30 | /RST |
