240x128 Graphic LCD Modules

VG2401283

1.Built-in controller RA6963 or equivalent
2.+ 5V single power supply
3.1/128 duty cycle
4.Backlight: LED B/L
5.Option: External Negative Voltage

Prev Next
  • 240x128 Graphic LCD Module - VG2401283
  • Mechanical Data
  • Electronic Characteristics
  • Pin Assignment

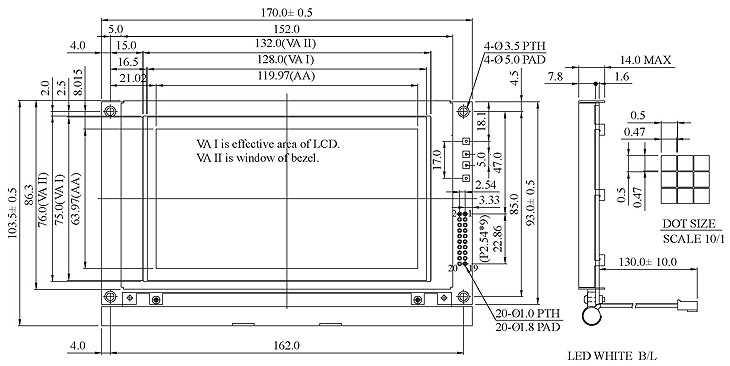

  • Dimension
Item Standard Value Unit
Module Dimension 170.0 x 103.5 mm
Viewing Area 132.0 x 76.0 mm
Active Area 119.97 x 63.97 mm
Dot Size 0.47 x 0.47 mm
Dot Pitch 0.5 x 0.5 mm
Item Symbol Condition Typical Value Unit
Input Voltage VDD 25 ℃ 5.0 V
Supply Current IDD VDD = +5V 65.0 mA
LCD Driving Voltage VDD - VO 25 ℃ 18.1 V
LED Forward Voltage Vf 25 ℃ LED-White 3.2 V
LED Forward Current If 25 ℃ LED-White 180 mA
Pin Symbol Function
1 FGND Frame GND
2 VSS GND
3 VDD +5V
4 VO Contrast Adjustment
5 /WR Data write
6 /RD Data read
7 /CE Chip enable
8 C/D Command/data read/write
9 VEE Negative Voltage output
10 /RST Reset signal
11~18 DB0~DB7 Data bus line
19 FS Font select(H:6x8, L:8x8)
20 RV Reverse(H:reverse, L:normal)

VG2401283
