16x1 COG LCD Modules

VO1611

1.5x8 dots with cursor
2.Built-in controller ST7032
3.+3V single power supply
4.1/9 duty cycle
5.Backlight: LED B/L

Next
  • 16x1 COG LCD Modules - VO1611
  • Mechanical Data
  • Electronic Characteristics
  • Pin Assignment

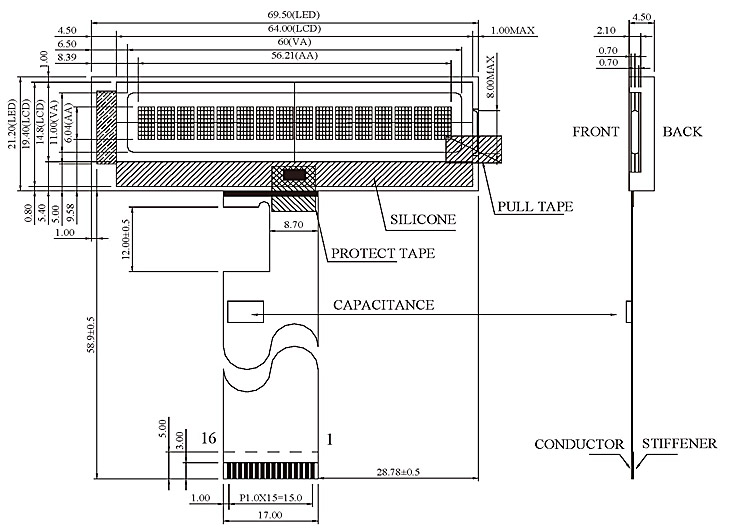

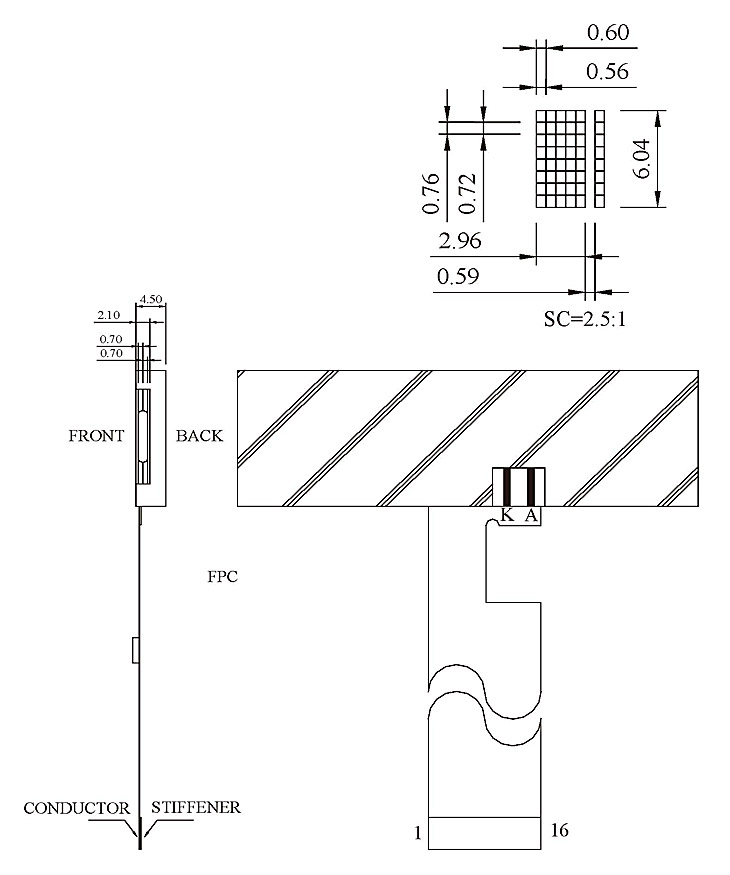

  • Dimension
Item Standard Value Unit
Module Dimension 69.5 x 80.1 mm
Viewing Area 60.0 x 11.0 mm
Active Area 56.21 x 6.04 mm
Dot Size 0.56 x 0.72 mm
Character Size 2.96 x 6.04 mm
Item Symbol Condition Typical Value Unit
Input Voltage VDD 25 ℃ 3.0 V
Supply Current IDD VDD = +3V 0.9 mA
Supply Voltage For Panel VLCD 25 ℃ 5 V
Pin Symbol Function
1 VSS GND
2 REST RESET input pin
3 VSS GND
4 VSS GND
5 R/W H/L read/write signal
6 RS H:Data L:Instruction
7~10 DB4~DB7 H/L data bus line
11 VDD +3V
12 E Enable select input pin
13 VSS GND
14 VLCD LCD Voltage Pin
15 A Power supply for B/L (+)
16 K Power supply for B/L (-)

COG LCD Modules - VO1611COG LCD Modules - VO1611
