| Item | Standard Value | Unit |
|---|---|---|

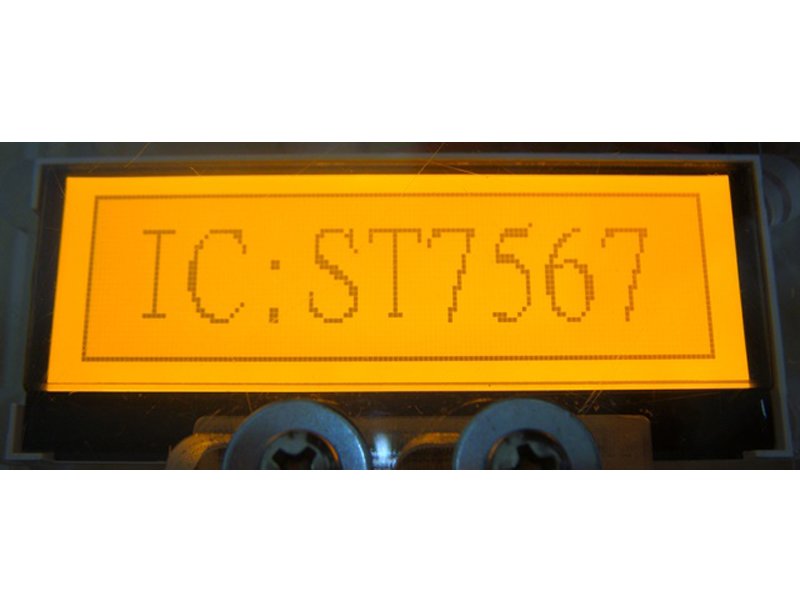

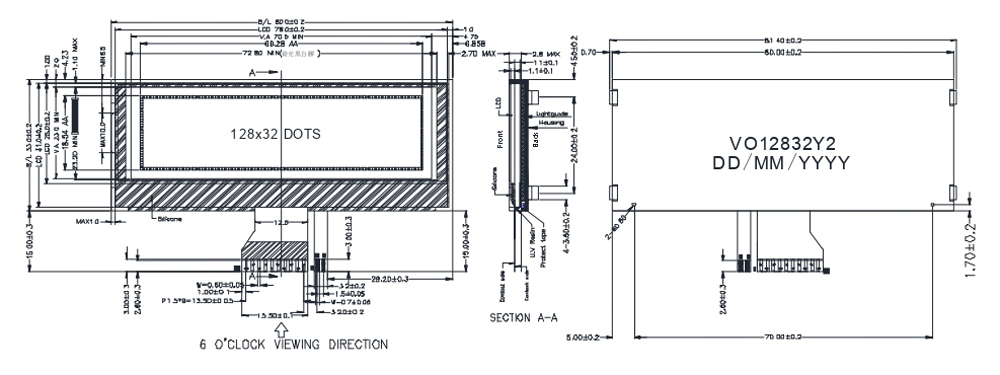

| Module Dimension | 80.0 x 33.0 | mm |
| Viewing Area | 70.5 x 23.0 | mm |
| Active Area | 66.28 x 18.54 | mm |
| Dot Size | 0.498 x 0.56 | mm |
| Dot Pitch | 0.518 x 0.58 | mm |
| Interface | SPI |
| Item | Symbol | Condition | Typical Value | Unit |
|---|---|---|---|---|
| Input Voltage | VDD | 25℃ | 3.0 | V |
| Supply Current | IDD | VDD = +3.0V | 1.5 | mA |
| Supply Voltage For Panel | VLCD | 25℃ | 5.9 | V |
| Pin | Symbol | Function |
|---|---|---|
| 1 | CSB | Chip select input pins |
| 2 | RSTB | Reset signal input |
| 3 | A0 | Command/Data select |
| 4 | SCK | Serial clock input |
| 5 | SDA | Serial data input |
| 6 | Vdd | Supply Voltage for logic VDD. |
| 7 | VSS | Supply Voltage for logic GND |
| 8 | V0 | DC-DC voltage converter. |
| 9 | XV0 | DC-DC voltage converter. |
| 10 | VG | DC-DC voltage converter. |
