VC16111

VC16111

1. 5x8 dots with cursor
2. Built-in controller RW1063
3. + 5V single power supply
4. 1/16 duty cycle
5. LED B/L pins: A/K, or 1/2, 15/16
6. Backlight: LED B/L
7. Option: Negative Voltage
8. SPI or IIC interface(option)

Prev Next
  • VC16111
  • Mechanical Data
  • Electronic Characteristics
  • Pin Assignment
  • Display Address (DDRAM)

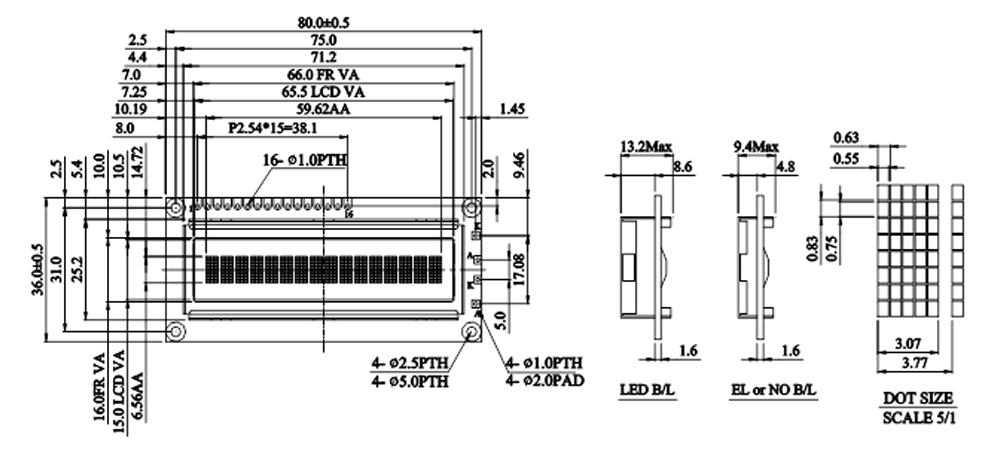

  • Dimension
Item Standard Value Unit
Module Dimension 80.0 x 36.0 mm
Viewing Area 66.0 x 16.0 mm
Active Area 59.62 x 6.56 mm
Dot Size 0.55 x 0.75 mm
Character Size 3.07 x 6.56 mm
Item Symbol Condition Typical Value Unit
Input Voltage VDD 25°C 5.0 V
Supply Current IDD VDD = +5V 1.5 mA
LCD Driving Voltage VDD - VO 25°C 4.5 V
LED Forward Voltage Vf 25°C 4.2 V
LED Forward Current If 25°C 110 mA

SPI

Pin Symbol Function
1 Vss GND
2 VDD +5V
3 VO Contrast Adjustment
4 RS H:Data L:Instruction
5-11 N.C Keep floating
12 /CS Chip selection input
13 SCLK serial clock input
14 SDA serial data input
15 A Power supply for B/L (+)
16 K Power supply for B/L (-)

IIC

Pin Symbol Function
1 Vss GND
2 VDD +5V
3 VO Contrast Adjustment
4-6 N.C Keep floating
7 SA0 Slave address
8 SA1 Slave address
9-11 N.C Keep floating
12 /CS Chip selection input
13 SDA serial data input
14 SCLK serial clock input
15 A Power supply for B/L (+)
16 K Power supply for B/L (-)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
00 01 02 03 04 05 06 07 40 41 42 43 44 45 46 47
