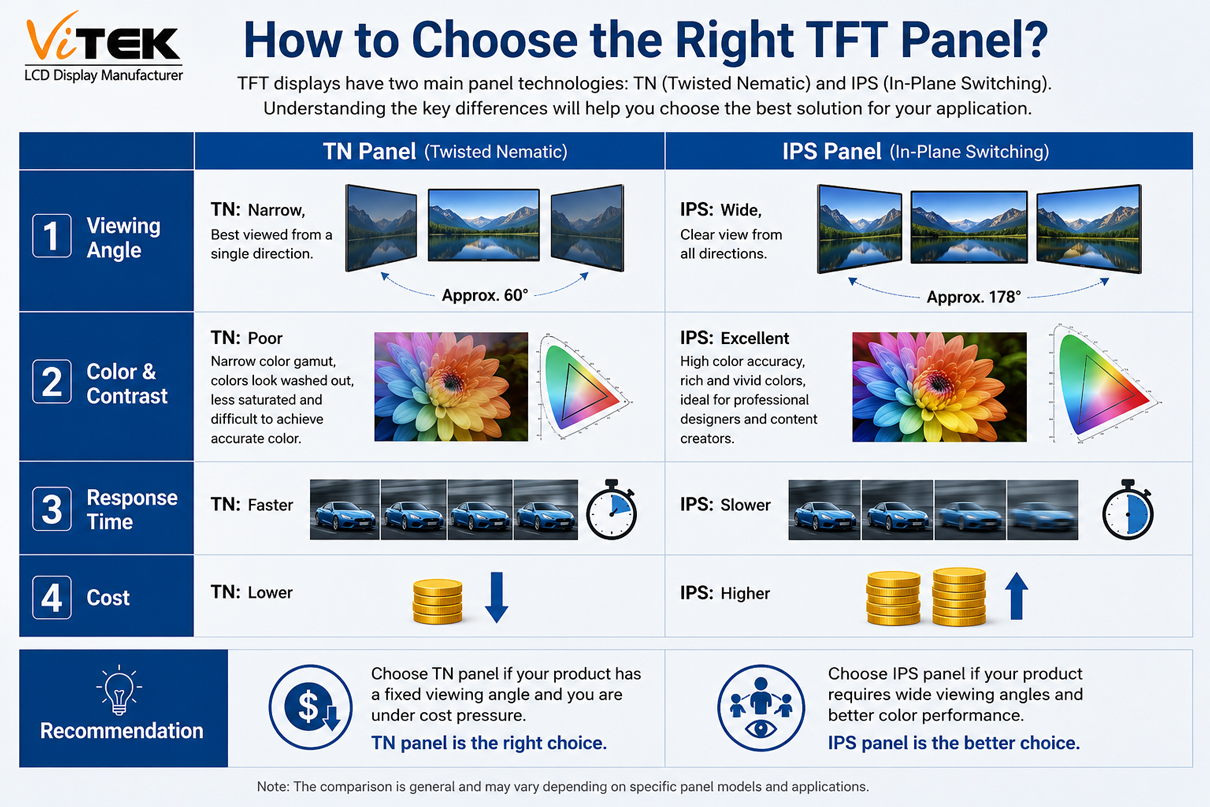

How to Choose the Right TFT Panel?
Today, the two most common TFT display technologies are TN (Twisted Nematic) and IPS (In-Plane Switching) panels. Each has its own advantages depending on the application requirements.
| Feature | TN Panel | IPS Panel |
|---|---|---|
| Viewing Angle | Narrower, optimized for a specific viewing direction | Wide viewing angle, visible from almost all directions |
| Color & Contrast | More limited color reproduction and narrower color gamut | Excellent color accuracy, richer colors, and higher contrast |
| Response Time | Faster | Slightly slower |
| Cost | Lower | Higher |
1. Viewing Angle
TN: Offers a narrower viewing angle and is best suited for applications where users view the display from a fixed direction.
IPS: Provides an ultra-wide viewing angle, ensuring consistent image quality and color performance from virtually any direction.
2. Color Performance & Contrast
TN: Generally has a narrower color gamut, resulting in less vibrant colors and lower color accuracy.
IPS: Delivers superior color reproduction, richer image details, and excellent color consistency. It is the preferred choice for applications requiring high-quality visual performance.
3. Response Time
TN: Typically offers faster response times, making it suitable for applications where quick screen updates are important.
IPS: Slightly slower than TN panels, but the difference is often negligible for most industrial and commercial applications.
4. Cost
TN: More cost-effective and widely used in price-sensitive applications.
IPS: Higher cost due to its advanced display performance and wider viewing angles.
Recommendation
Choose a TN Panel If:
- The display is viewed from a fixed direction.
- Cost is a primary consideration.
- Basic color performance is acceptable.
Choose an IPS Panel If:
- Wide viewing angles are required.
- Superior color quality and image consistency are important.
- The product demands a premium user experience and better visual performance.
At Vitek, we offer both TN and IPS TFT-LCD solutions and can recommend the most suitable display based on your application's viewing angle, brightness, interface, operating environment, and cost requirements. Contact our team for professional advice and customized display solutions.
