LCD Controller Board

VT035A-ZN03-B06D

1. Screen Size: 3.45 inch
2. Dimension (W x H x T): 76.9 x 64.9 x 7.26 mm
3. Active Area: 70.08 x 52.56 mm
4. Resolution: 320x(RGB)x240 (pixels)
5. View angle (U/D/L/R): 70/70/70/70
6. Brightness: 400 cd/m²
7. Contrast Ratio: 400:1
8. Interface: 8080 8bit

Next
  • AD Board - VT035MN03KBAD04-02
  • Mechanical Data
  • Electronic Characteristics
  • Pin Assignment

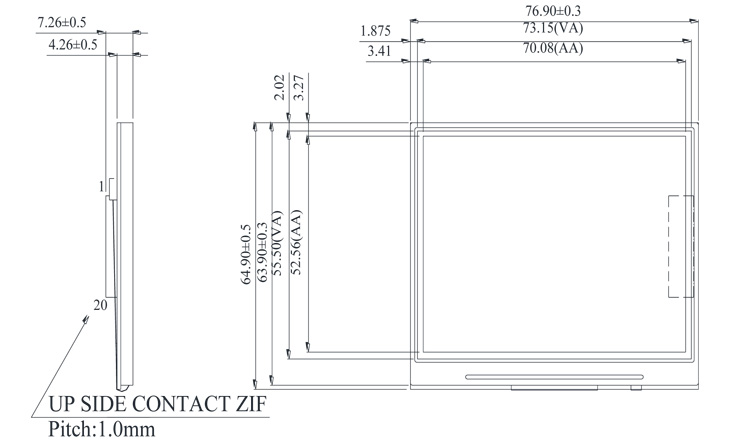

  • Dimension
Item Standard Value Unit
Module Dimension 76.9 x 64.9 mm
Viewing Area 73.15 x 55.5 mm
Active Area 70.08 x 52.56 mm
Dot Size 73 x 219 mm
Parameter Symbol Rating Unit
Min. Typ. Max.
Power Voltage VDDIO 3.0 3.3 3.6 V
Digital Operation Current IDD － － － mA
High-level input voltage VIH 0.8 VDDIO － VDDIO +0.5 V
Low-level input voltage VIL － － 0.2 VDDIO V
High-level output voltage VOH 0.8 VDDIO － Vcc+0.5 V
Low-level output voltage VOL － － 0.2 VDDIO V
Pin Symbol Function
1 VSS Supply Voltage for logic Ground
2 VDD Supply Voltage for logic
3 BL_E Backlight Enable(in this module is power on Enable)
4 D/C# H:DATA. L: Instruction code
5 WR# write strobe signal
6 RD# read strobe signal
7 DB0 Data bit 0
8 DB1 Data bit 1
9 DB2 Data bit 2
10 DB3 Data bit 3
11 DB4 Data bit 4
12 DB5 Data bit 5
13 DB6 Data bit 6
14 DB7 Data bit 7
15 CSB# Chip select
16 RES# Master synchronize reset
17 NC No connection
18 NC No connection
19 NC No connection
20 NC No connection

AD BOARD
