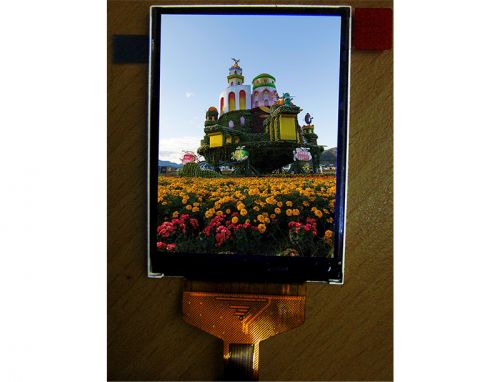

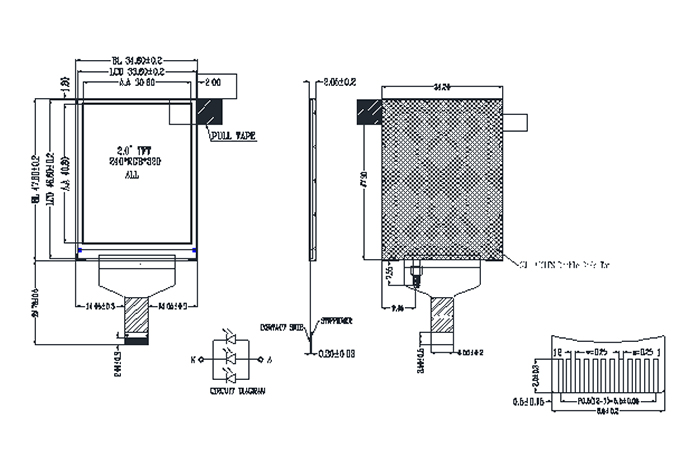

VT020D
1. Screen Size: 2.0 inch
2. Dimension (W x H x T): 34.6 x 47.8 x 2.05 mm
3. Active Area: 30.6 x 40.8 mm
4. Resolution: 240x(RGB)x320 (pixels)
5. View angle (U/D/L/R): 80/80/80/80
6. Brightness: 400 cd/m2 TYP
7. Contrast Ratio: 800:1 TYP
8. Interface: SPI-4
9. Option: N.C
Pin No Symbol Description Input/Output Note
1 GND Ground P
2 LED K LED- P
3 LED A LED+ P
4 VDD Power supply P
5 GND Ground P
6 GND Ground P
7 D/C serial interface D/C(RS) I
8 /CS Chip select I
9 SCL SPI Clock I
10 SDA SPI Data I
11 RESET RESET I
12 GND Ground P
