5.0 TFT LCD, TFT Module

  • produsts-pic

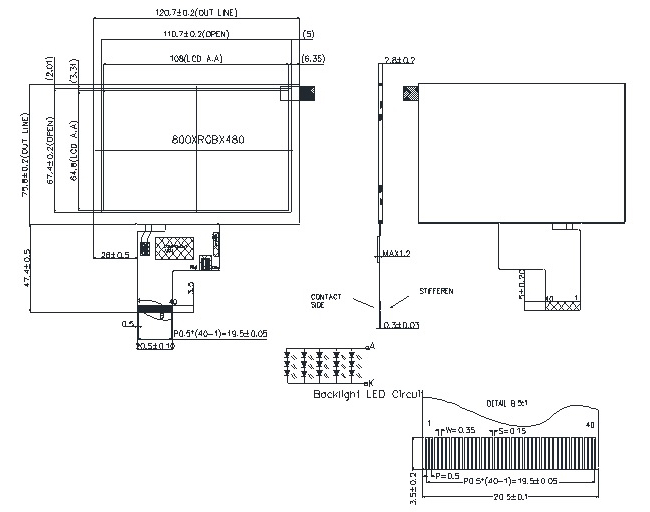

VT050B

1. Screen Size: 5.0 inch
2. Dimension (W x H x T): 120.76 x 75.85 x 2.9 mm
3. Active Area: 108.0 x 64.8 mm
4. Resolution: 800x(RGB)x480 (pixels)
5. View angle (U/D/L/R): 50/70/70/70
6. Brightness: 400 cd/m2
7. Contrast Ratio: 500:1
8. Interface: RGB Interface
9. Option: Touch Panel ,Backlight=12 Dices

Pin Symbol Pin Symbol
1 LED-K 32 HSYNC
2 LED-A 33 VSYNC
3 GND 34 DEN
4 VDD 35 NC
5~12 R0~R7 36 GND
13~20 G0~G7 37 XR/NC
21~28 B0~B7 38 YD/NC
29 GND 39 XL/NC
30 CLK 40 YU/NC
31 DISP
