  • LCD Character Display 16x1
VC1613

1.5x8 dots with cursor
2.Built-in controller KS0066 or equivalent
3.+ 5V single power supply (option: +3V)
4.1/16 duty cycle
5.LED B/L pins: A/K, or 1/2, 15/16
6.Backlight: LED B/L
7.Option: Negative Voltage

Item Standard Value Unit

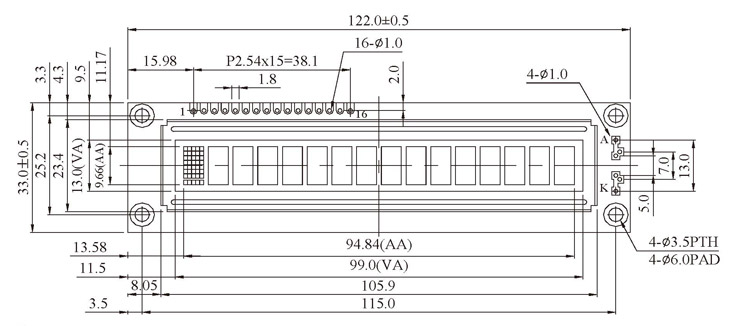

Module Dimension 122.0 x 33.0 mm
Viewing Area 99.0 x 13.0 mm

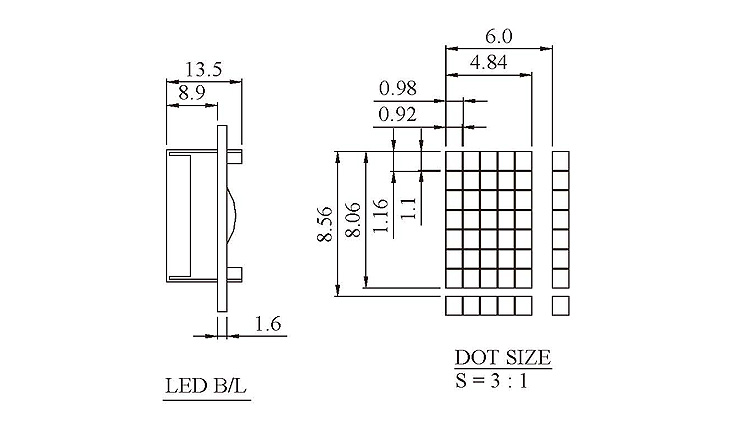

Active Area 94.84 x 9.66 mm
Dot Size 0.92 x 1.1 mm
Character Size 4.84 x 9.66 mm
Item Symbol Condition Typical Value Unit
Input Voltage VDD 25 ℃ 5.0 V
Supply Current IDD VDD= +5V 1.5 mA
LCD Driving Voltage VDD - VO 25 ℃ 4.5 V
LED Forward Voltage Vf 25 ℃ 4.1 V
LED Forward Current If 25 ℃ 160 mA
Pin Symbol Function
1 VSS GND
2 VDD +5V(+3V option)
3 VO Contrast Adjustment
4 RS H:Data L:Instruction
5 R/W H/L read/write signal
6 E H→L enable signal
7~14 DB0~DB7 H/L data bus line
15 A Power supply for B/L (+)
16 K Power supply for B/L (-)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
00 01 02 03 04 05 06 07 40 41 42 43 44 45 46 47
