  • LCD Character Display - VC1611
VC1611

1.5x8 dots with cursor
2.Built-in controller KS0066 or equivalent
3.+ 5V single power supply
4.1/16 duty cycle
5.LED B/L pins: A/K, or 1/2, 15/16
6.Backlight: LED B/L
7.Option: Negative Voltage

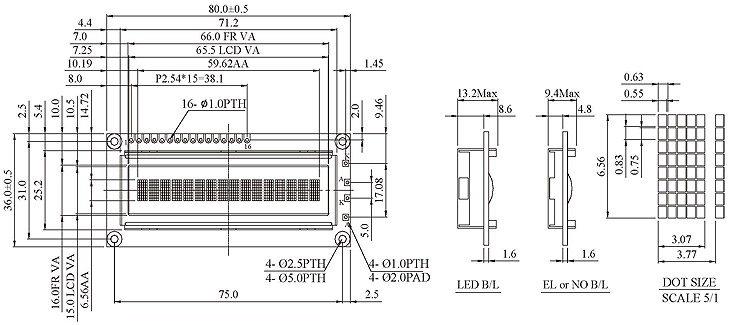

Item Standard Value Unit
Module Dimension 80.0 x 36.0 mm
Viewing Area 66.0 x 16.0 mm
Active Area 59.62 x 6.56 mm
Dot Size 0.55 x 0.75 mm
Character Size 3.07 x 6.56 mm
Item Symbol Condition Typical Value Unit
Input Voltage VDD 25 ℃ 5.0 V
Supply Current IDD VDD= +5V 1.5 mA
LCD Driving Voltage VDD - VO 25 ℃ 4.5 V
LED Forward Voltage Vf 25 ℃ 4.2 V
LED Forward Current If 25 ℃ 110 mA
Pin Symbol Function
1 VSS GND
2 VDD +5V(+3V option)
3 VO Contrast Adjustment
4 RS H:Data L:Instruction
5 R/W H/L read/write signal
6 E H→L enable signal
7~14 DB0~DB7 H/L data bus line
15 A Power supply for B/L (+)
16 K Power supply for B/L (-)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
00 01 02 03 04 05 06 07 40 41 42 43 44 45 46 47

VC1611
