VT018B
1.Screen Size: 1.77 inch

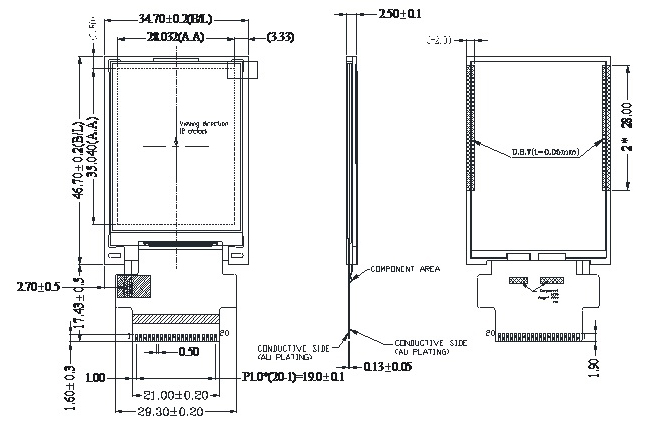

2.Dimension (W x H x T): 34.7 x 46.7 x 2.5 mm
3.Active Area: 28.032 x 35.04 mm
4.Resolution: 128x(RGB)x160 (pixels)
5.View angle (U/D/L/R): 45/20/45/45
6.Brightness: 320 cd/m2
7.Contrast Ratio: 500:1
8.Interface: 8bit MCU interface
Pin Symbol Pin Symbol Pin Symbol
1 LEDK
2 LEDK
3 GND
4 VDD
5 TE
6 NC
7 CS
8 RESET
9 RS
10 WR
11 RD
12 DB7
13 DB6
14 DB5
15 DB4
16 DB3
17 DB2
18 DB1
19 DB0
20 GND
